How PLC Upgrades Save Money on Legacy Sputtering Systems
Your legacy sputtering system was built to last. The vacuum chamber is mechanically sound. The deposition process is proven. But the controller-the 20, 30, or 40-year-old computer controlling everything-is becoming a liability so a PLC is needed.
2 min read
Your legacy sputtering system was built to last. The vacuum chamber is mechanically sound. The deposition process is proven. But the controller-the 20, 30, or 40-year-old computer controlling everything-is becoming a liability.
The Problem: When Legacy Controllers Fail
Old controllers fail suddenly. One day your control system won't boot. A spare part doesn't exist. The manufacturer stopped supporting it in 2005. Production stops. You're looking at months of downtime while you source a replacement or rebuild from scratch.
The real cost isn't the $150,000 replacement. It's the production loss. For fabs running 24/7, that's $50,000+ per day in lost capacity.
The PLC Upgrade Solution
A PLC (Programmable Logic Controller) upgrade replaces that aging electronics brain with modern, industrial-grade controls.
Key Benefits:
✅ Future-proof (modern, industry-standard parts available anywhere)
✅ Keep your process intact (no requalification needed)
✅ Real-time optimization (networked sensors, diagnostics)
✅ Eliminate downtime risk (predictive alerts, error logging)
✅ Reduce operator error (intuitive interfaces, recipe management)
Real Cost Breakdown
Perkin Elmer 4400 that's 25 years old, controller just died:
Option A: Buy New System
Equipment: $400,000+
Installation: 3-4 months
Downtime cost: ~$200,000 (50 days × $4,000/day)
Total: ~$600,000
Option B: PLC Upgrade
Hardware + installation: $80,000
Integration: 2-3 weeks
Zero requalification
Total: ~$100,000 in 3 weeks
You save $500,000 and get online 6 months faster.
What's Included in a PLC Upgrade:
Hardware selection (Opto 22, Siemens, Allen-Bradley, or equivalent)
Custom control code (replicates your original process exactly)
HMI touchscreen setup
Sensor/pump/heater integration
Full system testing
Documentation & manuals
On-site commissioning support
Real Example:
One customer ran a PE 4400 built in 1998. Controller failed in 2023.

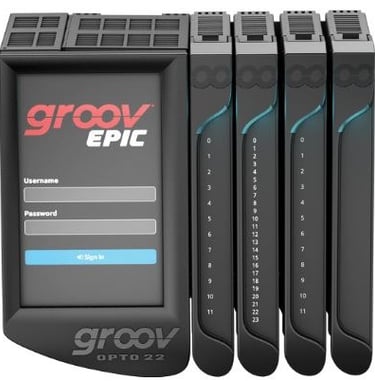

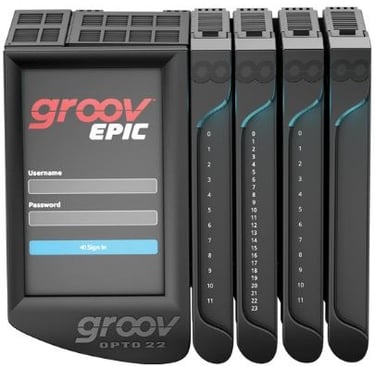

We upgraded to a modern OPTO 22 PLC. The chamber performed the exact same recipe-process quality unchanged. But now they get:
Real-time diagnostics
Online support
Data Logging
Custom recipe flexibility
Spare parts always in stock
Installation: 90 days. Back in production: Month 3.
The Requalification Myth
Many think: "If I change the controller, won't I have to requalify the process?"
No. Your process is the physical hardware (chamber, targets, pump). The controller just tells them what to do. If we write code to tell them the exact same thing, your process is unchanged. Requalification is only needed if you change the mechanical hardware or deposition parameters.
When to Upgrade vs. Replace:
Upgrade if:
Vacuum chamber is mechanically sound
Deposition hardware (targets, heaters) works fine
Only controller/electronics are aging
Your process is proven and stable
Replace if:
Chamber has cracks, leaks, or corrosion
Multiple subsystems failing
You need new capabilities
Process is obsolete
Why Now?
Every month you run on a failing controller is risk. A single component death costs $50,000+ in downtime. A PLC upgrade starting cost is $60,000 and eliminates that risk forever.
If your controller is over 15 years old, it's not if it will fail-it's when. Upgrade now and control the timeline.
